The Ultimate Guide to Deck Joist Tape

If you're building or repairing a deck, there's a good chance someone's told you to "just tape the joists" and move on. It sounds like a minor step. It isn't. Deck joist tape — sometimes called joist flashing tape or deck flashing tape — is one of the cheapest ways to add years to a deck's life, and it's one of the first things inspectors and experienced builders check when they're evaluating a substructure.

Here's what it actually does, which type makes sense for your project, and how to put it on correctly the first time.

What Is Deck Joist Tape?

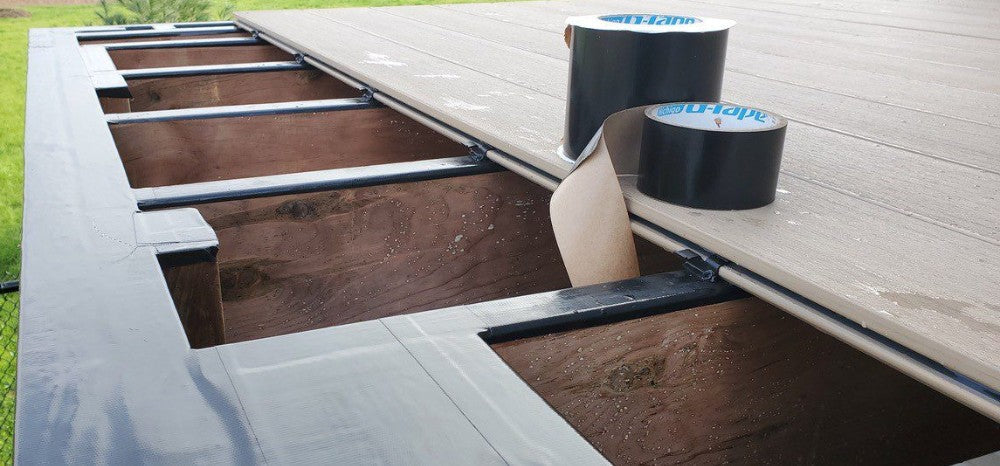

Deck joist tape is a self-adhesive strip applied to the top of joists, beams, and ledger boards before the decking goes down. It creates a waterproof layer between the fasteners and the wood underneath, so rain, snow melt, and general moisture can't sit on top of the framing and soak in.

Most residential decks are still framed with pressure-treated lumber. Pressure treatment resists insects and slows decay, but it doesn't make wood waterproof — water that pools on top of a joist, especially around screw holes, will eventually find its way in. Once that happens, you're looking at rot, mold, and in bad cases, a structural repair that costs a lot more than a roll of tape ever would have.

Butyl vs. Acrylic: Choosing a Tape

There are two materials doing almost all the work in this category, and they behave differently enough that it's worth knowing which one you're buying.

Butyl Joist Tape

Butyl is the older, more established option, and it's still the standard a lot of contractors default to. It's thick, aggressively sticky, and once it's down, it's down — repositioning isn't really an option. If two adhesive faces touch each other before you get the tape placed, that strip is done; you'll be cutting a new piece.

What you get in exchange for that lack of forgiveness is a permanent, tenacious seal that holds up across wide temperature swings, resists UV breakdown for jobs where framing sits exposed a while before decking goes down, and doesn't lose its grip over time.

Acrylic Tape (G-Tape & FrogTape Deck & Joist)

GTape - Deck Flashing & Joist Tape

Acrylic-based tape — G-Tape from Mitsubishi Nichigo is the name most people know — has picked up a lot of ground with contractors because it's easier to work with. You can reposition it during application, and it tears by hand instead of requiring a blade. Full adhesion builds over a few hours as the acrylic cures, rather than being instant like butyl.

For crews running through a lot of linear footage in a day, that repositionability alone is often worth the switch. G-Tape also holds up under sun exposure, so it's a reasonable pick for framing that sits exposed for a while before decking goes down.

An Alternative: Roll-On Frame Coating

Roll-On Deck Frame Coatings for Decks and Exterior Structures

For framing that isn't tape-friendly — stair stringers, box steps, sistered joists, anywhere with a lot of cuts and angles — a liquid, roll-on deck frame coating is worth considering instead of tape. Products like FastenMaster's roll-on coating go on with a brush or roller, cure into a flexible waterproof membrane, and cover corners and gaps that a strip of tape can't reach. It's also UV resistant and can be applied to lumber that's still slightly damp — useful if you're working around weather.

Starborn's JOISTCOTE is a newer entry in this category and worth a look for anyone weighing tape against a roll-on. It's a water-based formula that goes on with a brush or roller and dries to the touch in 30 to 60 minutes with no tackiness — a gallon covers roughly 480 linear feet. It's freeze/thaw stable and cleans up with soap and water, which makes it easier to keep on hand and use across seasons than some of the solvent-based coatings on the market. Like other roll-ons, it's aimed at exactly the spots tape struggles with: corners, cuts, and irregular framing where getting a clean, gap-free strip down just isn't practical.

At a Glance

Butyl Tape Acrylic (G-Tape) Roll-On Coating
Application Peel & stick Peel & stick Brush/roller
Repositionable No Yes N/A
Set/cure time Instant A few hours 20–60 min dry to touch
UV resistant Yes Yes Yes*
Best for Straight joist runs, max hold Fast installs, sun-exposed framing Corners, stringers, damp lumber

*Varies by product — confirmed for FastenMaster's roll-on; not specified for JOISTCOTE.

Why It's Worth Doing

Moisture protection. Water that gets between deck boards has to land somewhere, and without a barrier, it lands on the joist and stays there. That's how rot starts.

Framing that lasts as long as the decking. Composite decking is commonly warrantied for 25 to 50 years. That warranty is on the boards — it does nothing for the frame underneath. Tape is what closes that gap.

Fewer corroded fasteners. Every screw or nail that penetrates untreated wood opens a small path for moisture. Joist tape self-seals around fasteners as they're driven, which cuts down on the rust and corrosion that eventually weakens the connection.

Cheap relative to the alternative. A roll runs somewhere in the $20–$50 range, and a full deck's worth of joists typically costs a few hundred dollars to tape. Compare that to replacing rotted framing after the fact, and it's not a close call.

Sizing It Right

Widths are built around what you're covering, not one-size-fits-all:

  • 1-5/8" to 2" — standard single joists
  • 3" to 4" — double beams and wider framing members
  • 6", 9", and 12" — posts, blocking, and stair framing

Trex, Camo, and G-Tape all manufacture a range of widths, so match the tape to the member rather than defaulting to whatever's on the shelf.

How to Apply It

1. Start with clean, dry lumber. Some acrylic tapes tolerate a slightly damp surface, but you'll get the best adhesion — with any tape — on wood that's clean and fully dry.

2. Cut it to length. G-Tape tears by hand; butyl needs a utility knife for a clean edge.

3. Press it down. Peel the backing and apply firm, even pressure along the top of the joist, letting it overhang slightly on both sides.

4. Roll out the air. A hand roller (or firm hand pressure if you don't have one) removes bubbles and locks in adhesion. Skipping this step is the most common reason tape lifts or peels later.

Mistakes That Undercut the Whole Job

  • Applying butyl tape to wet or damp wood
  • Leaving gaps instead of covering the full joist surface
  • Sizing down to save material, which reduces coverage
  • Rushing the roll-down step and leaving air pockets under the tape

Frequently Asked Questions

Is deck joist tape necessary? For any deck framed in pressure-treated lumber, yes. It's inexpensive relative to the repair costs it prevents, and it protects the one part of the structure you won't see again once the decking is installed.

What is deck joist tape used for? It seals the tops of joists, beams, and ledger boards against moisture — the main entry points for water once decking is fastened down.

Can I use duct tape or standard flashing tape instead? Duct tape isn't built for long-term outdoor exposure and will break down. General-purpose flashing tape can work in a pinch, but purpose-built joist tape is formulated specifically for the temperature swings and fastener penetration a deck substructure sees.

Do I need it if I'm using composite decking? Yes — composite and PVC decking protect the boards you can see, not the wood frame underneath. If that frame is standard lumber, it still needs protection.

Steel and Aluminum Framing: A Different Reason to Tape

Joist tape isn't only a wood problem. Deck framing built on steel or aluminum doesn't rot, so moisture protection isn't the concern — but a layer of tape across the top of the frame still earns its keep. Metal framing and decking rarely sit in perfect, gap-free contact, and small inconsistencies between the board and the joist below it can leave room for debris to work its way in over time. A run of tape along the top closes that gap.

The bigger reason to use it here, though, is noise. Decking expands and contracts with temperature, and on a metal substructure there's nothing to absorb that movement — no give in the frame the way there is with wood. Left bare, that movement shows up as clicking, shifting, or a hollow clack underfoot as boards move against the metal. A layer of tape, butyl in particular given its thickness and tack, cushions that contact point and keeps the deck quiet. In this application it's functioning less like flashing and more like a gasket.

Bottom Line

Whether you go with butyl for maximum hold, acrylic for easier handling, or a roll-on coating for complex framing, the goal is the same: keep water off the wood holding your deck together. It's a small line item next to the cost of decking, railing, and labor — and it's the difference between a substructure that lasts as long as the deck on top of it and one that doesn't.
